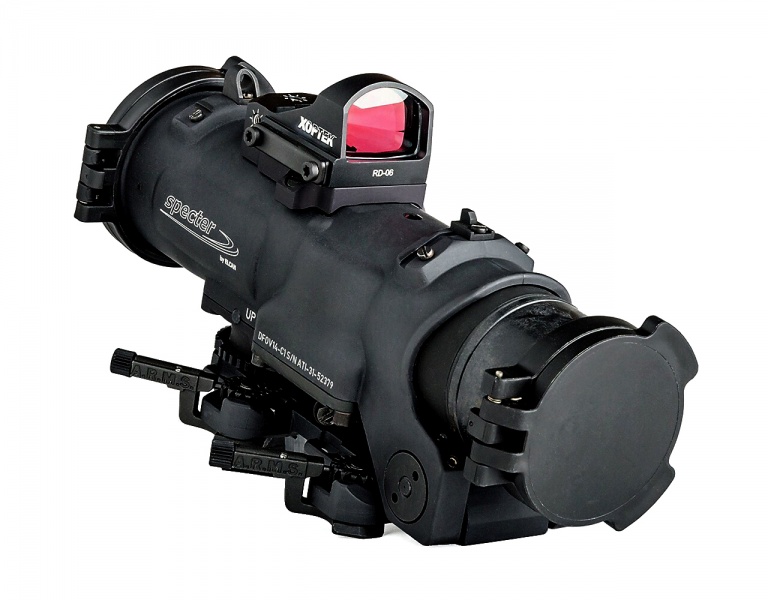

ELCAN SpecterDR 1x/4x
Code: DFOV14/1
The SpecterDR 1-4 Dual Role Optical Sight represents a revolution in optical sight design. The world’s first truly dual field of view combat optical sight, the SpecterDR switches instantly from a 4x magnified sight to a 1x CQB sight with the throw of a lever. Unlike zoom sights, the SpecterDR offers an optimized optical path and identical eye relief in both 4x and 1x modes.
3.139,95 € z DDV
Retail price:
Purchase and get 2573
Select color:
14
Black
Select cal. / barrel:
add to cart
Send a request
DESCRIPTION
REVIEWS (0)
Did you purchase this product? Write a review and get 20 AMMO points.
Collected ammo points can be used to get discount on future orders.
Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. In 1x mode, the SpecterDR has by far the largest field of view in the industry. In 4x mode the SpecterDR offers a generous field of view, long eye relief, and ELCAN’S legendary crystal clear image.
The SpecterDR 1-4 offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.
Optional Adjustable A.R.M.S. Levers
All SpecterDR 1-4 Dual Role Optical Sights come equipped with standard integral A.R.M.S. but you can add Adjustable A.R.M.S. levers as an option. The New MK-II Lever® features a built-in precision adjustment wheel allowing finger tip (no tool) selection to desired tension to fit variations in 1913 Mil-Std Dimensions. The mounts adjustment wheel comes pre-gauged and locked to the center of the Mil-Std dovetail specs. The hash marks to the left or right of the adjustment wheels white marked indicator line, represent .002
Optional XOPTEK™ Micro Reflex Sight
Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
Specifications
Magnification: 4x / 1x
Length: 153 mm
Width: 74 mm
Height: 78 mm
Weight: 660 g
Reticle: Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
Aiming Dot diameter: 1.5 MoA @ 4x, 6 MoA @ 1x
Ballistic correction: Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
DFOV14-C1: CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG
DFOV14-C2: CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
CQB offset: <44mm @ 60m
Field of View: 26 deg @ 1x, 6.5 deg @ 4x
FoV @4x 11.4 m @ 100 m (34.2 ft @ 100 yds)
FoV @1x 48.8 m @ 100 m (146.3 ft @ 100 yds)
Illumination source: Battery-powered LED
Crosshair illumination: 5 settings, AN/PVS-22 compatible
Red Dot illumination: 5 settings, AN/PVS-22 compatible
Eye Relief : 70mm
Entrance pupil: 32mm
Exit pupil: 8mm
Nominal focus: 150m @ 4x, 70m @ 1x
Fixed focus range: 20m to infinity
Battery type: CR2032 (3v Lithium)
Battery life : 382 hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
Exterior finish: Hard-anodized aluminum, gray/black color
Adjustment resolution: 0.5 minute of angle
Adjustment range: 120 minutes of angle
Base requirement: Mil-Std-1913 Picatinny Rail
Attachment: A.R.M.S. Levers
Shockproof: 450 G
The SpecterDR 1-4 offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.
Optional Adjustable A.R.M.S. Levers
All SpecterDR 1-4 Dual Role Optical Sights come equipped with standard integral A.R.M.S. but you can add Adjustable A.R.M.S. levers as an option. The New MK-II Lever® features a built-in precision adjustment wheel allowing finger tip (no tool) selection to desired tension to fit variations in 1913 Mil-Std Dimensions. The mounts adjustment wheel comes pre-gauged and locked to the center of the Mil-Std dovetail specs. The hash marks to the left or right of the adjustment wheels white marked indicator line, represent .002
Optional XOPTEK™ Micro Reflex Sight
Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
Specifications
Magnification: 4x / 1x
Length: 153 mm
Width: 74 mm
Height: 78 mm
Weight: 660 g
Reticle: Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
Aiming Dot diameter: 1.5 MoA @ 4x, 6 MoA @ 1x
Ballistic correction: Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles.
DFOV14-C1: CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG
DFOV14-C2: CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
CQB offset: <44mm @ 60m
Field of View: 26 deg @ 1x, 6.5 deg @ 4x
FoV @4x 11.4 m @ 100 m (34.2 ft @ 100 yds)
FoV @1x 48.8 m @ 100 m (146.3 ft @ 100 yds)
Illumination source: Battery-powered LED
Crosshair illumination: 5 settings, AN/PVS-22 compatible
Red Dot illumination: 5 settings, AN/PVS-22 compatible
Eye Relief : 70mm
Entrance pupil: 32mm
Exit pupil: 8mm
Nominal focus: 150m @ 4x, 70m @ 1x
Fixed focus range: 20m to infinity
Battery type: CR2032 (3v Lithium)
Battery life : 382 hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
Exterior finish: Hard-anodized aluminum, gray/black color
Adjustment resolution: 0.5 minute of angle
Adjustment range: 120 minutes of angle
Base requirement: Mil-Std-1913 Picatinny Rail
Attachment: A.R.M.S. Levers
Shockproof: 450 G
