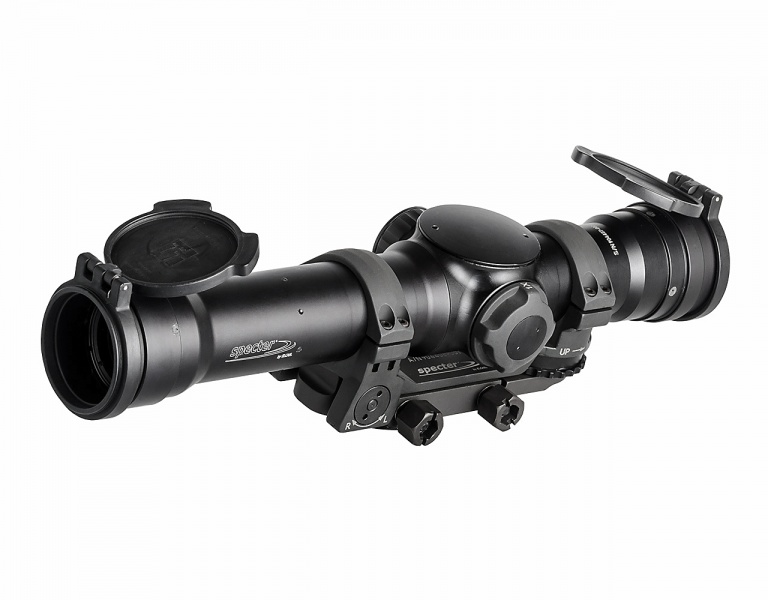

ELCAN SpecterTR 1x/3x/9x
Code: TFOV139/1
The SpecterTR is a 1/3/9x magnification scope giving any shooter the appropriate level of magnification required for any scenario on an AR style platform. The unique three field-of-view design maximizes combat effectiveness by providing precision close quarter, mid-range, and long range engagement capability. The SpecterTR™ rifle sight’s durability, versatility, and extra-long eye relief provides the user with an unmatched advantage on the battle field.
3.139,95 € z DDV
Retail price:
Purchase and get 2573
Select color:
Select cal. / barrel:
out of stock
Send a request
DESCRIPTION
REVIEWS (0)
Did you purchase this product? Write a review and get 20 AMMO points.
Collected ammo points can be used to get discount on future orders.
The 1x field-of-view provides a 16° viewing angle and an extremely fast, “both eyes open” target acquisition capability maximized by a red aiming dot and at least 70mm eye relief. The second field-of-view provides a 3x-magnified sight with a field–of-view of 6°, range compensating reticle, and precision mid-range marksmanship capability. In 9x, a crystal clear 2° viewing angle provides unmatched long-range target detection, identification, and engagement capability –all in a compact, lightweight 1264 mm, 829 g (scope and mount) telescopic package.
The magnification of the SpecterTR™ Tri-FOV weapon sight by ELCAN switches easily and quickly using a 3-position dial mounted on the side of the optical housing.
Specifications
Magnification: 1x / 3x / 9x
Field of View: 16 degrees (1x); 6 degrees (3x); 2 degrees (9x)
FOV at 100m: 28.7m (1x); 10.5m (3x); 3.5m (9x)
Entrance Pupil Diameter: 12mm (1x); 30mm (3x); 30mm (9x)
Exit Pupil Diameter: 11.7mm (1x); 10mm (3x); 3.33mm (9x)
Eye Relief: 78.6mm (1x); 70.4mm (3x); 74.1mm (9x)
Diopter Setting: -.75
Optic Axis Height: 39 mm (1.535”)
Length: 265mm (10.43”)
Width: 81 mm (3.19”)
Overall Height: 74 mm (2.91”)
Weight: 850 grams (1.9 Lbs)
Elevation / Azimuth Adjustment
External Zeroing
Adjustment Resolution: 0.1 mil/click in elevation and windage
Range of Adjustment:
- Elevation +90 MOA / -30 MOA minimum
- Azimuth +60 MOA / -60 MOA minimum
Illumination:
- Red Dot for 1X magnification. 5 illumination brightness levels
- Reticle illuminated for 3X and 9X. 5 illumination brightness levels
Reticle Pattern:
- Center cross hair at 100m
- Ranging lines to 800m for 5.56 and to 1000m for 7.62
- Target Ranging pattern
Weapon Attachment: Will mount to a Picatinny rail
The magnification of the SpecterTR™ Tri-FOV weapon sight by ELCAN switches easily and quickly using a 3-position dial mounted on the side of the optical housing.
Specifications
Magnification: 1x / 3x / 9x
Field of View: 16 degrees (1x); 6 degrees (3x); 2 degrees (9x)
FOV at 100m: 28.7m (1x); 10.5m (3x); 3.5m (9x)
Entrance Pupil Diameter: 12mm (1x); 30mm (3x); 30mm (9x)
Exit Pupil Diameter: 11.7mm (1x); 10mm (3x); 3.33mm (9x)
Eye Relief: 78.6mm (1x); 70.4mm (3x); 74.1mm (9x)
Diopter Setting: -.75
Optic Axis Height: 39 mm (1.535”)
Length: 265mm (10.43”)
Width: 81 mm (3.19”)
Overall Height: 74 mm (2.91”)
Weight: 850 grams (1.9 Lbs)
Elevation / Azimuth Adjustment
External Zeroing
Adjustment Resolution: 0.1 mil/click in elevation and windage
Range of Adjustment:
- Elevation +90 MOA / -30 MOA minimum
- Azimuth +60 MOA / -60 MOA minimum
Illumination:
- Red Dot for 1X magnification. 5 illumination brightness levels
- Reticle illuminated for 3X and 9X. 5 illumination brightness levels
Reticle Pattern:
- Center cross hair at 100m
- Ranging lines to 800m for 5.56 and to 1000m for 7.62
- Target Ranging pattern
Weapon Attachment: Will mount to a Picatinny rail
